Grid Code Compliance for PV Plant with PPC and SCADA in France

France
Utility Scale
5,52 MWp

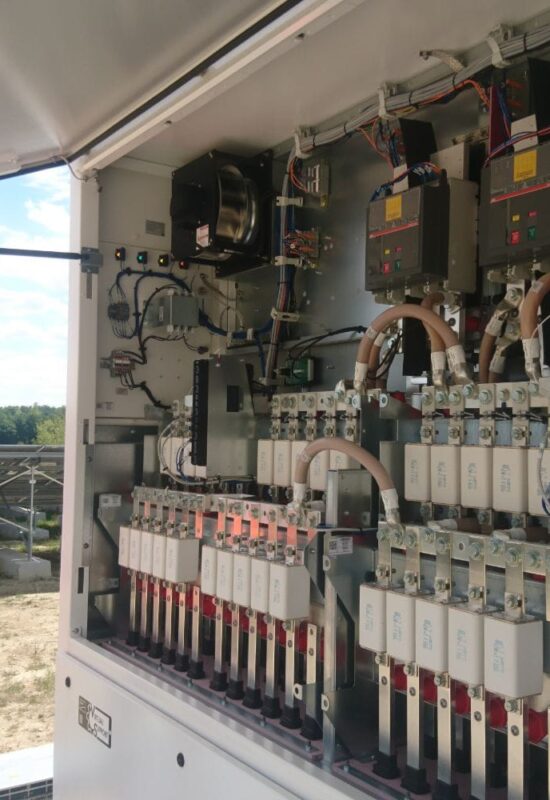

Injection control on the ENEDIS HTA network Villefranche-sur-Cher, France 2 (1)

Application
Injection control on the Enedis HTA network

The context

  • Product: ePowerControl PPC + SCADA

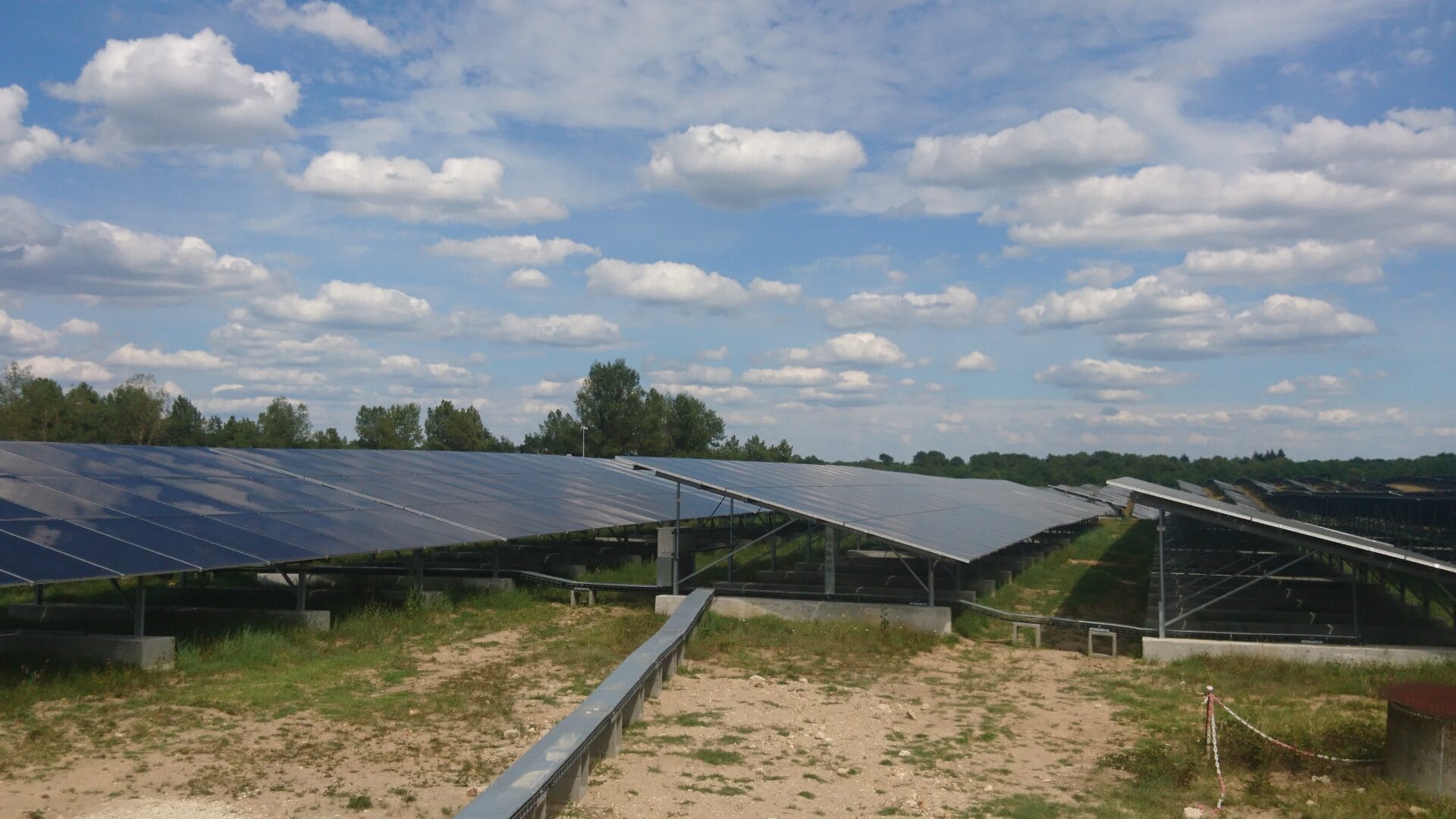

This project is an extension of an existing PV plant in Villefranche connected to the Enedis HTA grid. As the PV site expands, the extension must adhere to grid code regulations and adhere to monitoring and control constraints set by the Total Flex aggregator exclusively for the extension.

Elum Energy supplied a customized PPC controller and SCADA system to meet ENEDIS’ Distribution System Operator (DSO) specifications. These systems ensure compliance of the entire plant with injection rules at the common MV injection point.

The PPC controller integrates DEIE interface and manages Active and Reactive power control in alignment with Enedis’ ‘CRAC’ (Convention de Raccordement).

The SCADA system includes a remotely accessible HMI for site management, allowing editing of PPC operating parameters and real-time monitoring of the plant.

  • Layout:
    PV – 5,52 MWp
  • Inverters:
  • – VF1: 2 x SMA Skid 3060
  • – VF3: 1 x SMA Skid 3060
