ePowerControl ZE
Grid feed-in solar controller
A zero export controller dedicated to grid-tied solar plants for self-consumption applications to comply with national injection limitation regulation
Why choose ePowerControl ZE?
Efficient Grid Feed-in Management
Maximize PV production by curtailing solar power to avoid grid export and penalties. Set autonomous grid targets in compliance with local operator guidelines.
Power factor regulation
Fix solar power factor set points both in grid-tied and islanded configurations, through solar inverters reactive power management
Aggregation of Multiple points of injection
Combine the power of the multiple injection points within the system using only one controller, and with standard meters.
Reclaim control on the operation of your plant
Ensure compliance with local regulation while maximizing PV penetration with our C&I solar solutions

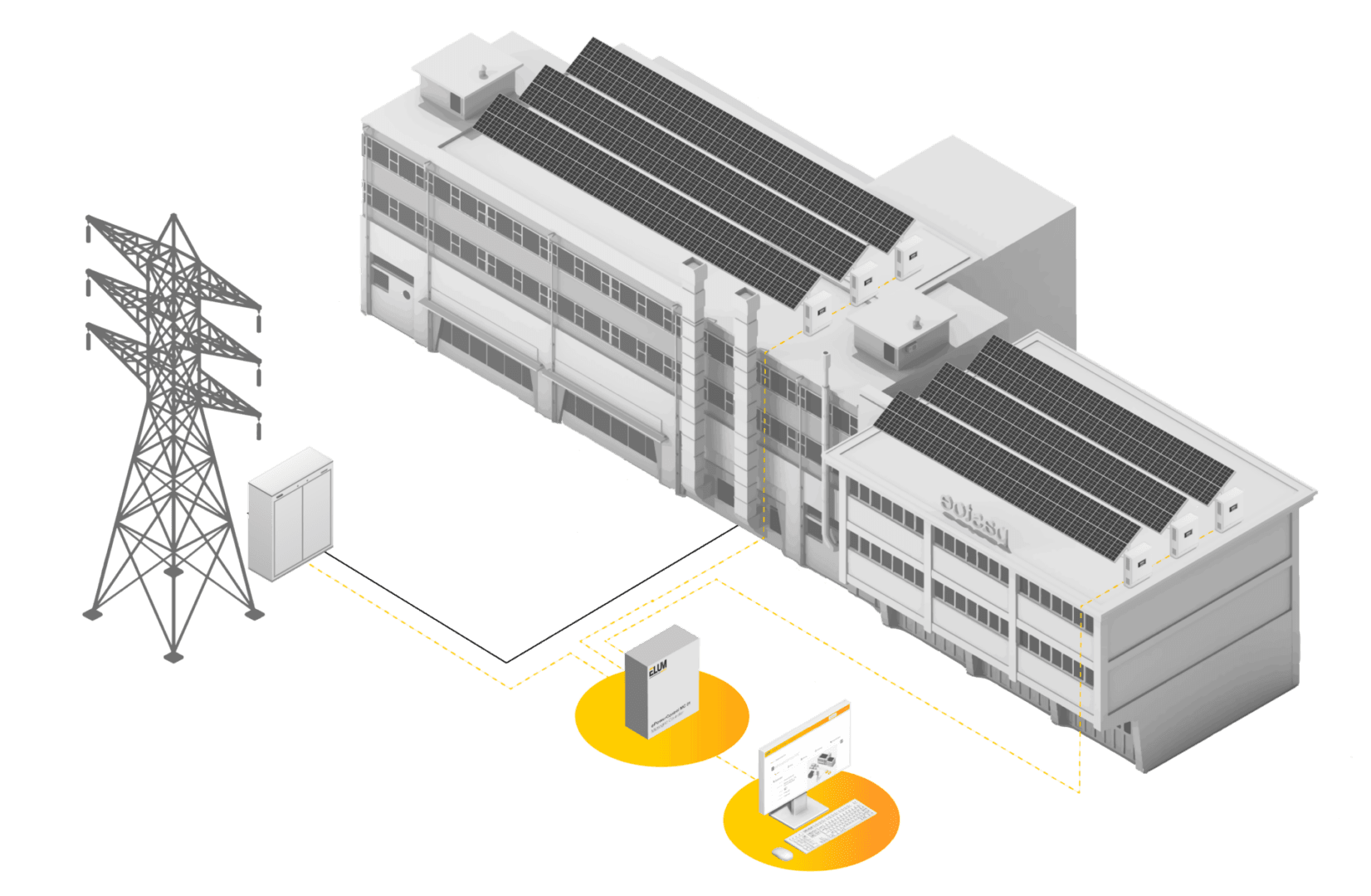

How does our zero export controller work?
Ensure control with integrated features
Export and Import control for a single or multiple points of injection
Management of solar inverters to limit export to the grid.
Reactive power management
Reactive power is controlled
dynamically to regulate PF at PCC within a configured range. Includes the possibility to prioritize active or reactive power objectives.
Avoid fluctuations
Limitation of ramps for all controlled assets both for active and reactive power control.
Advanced maintenance and failsafe modes
Maintenance mode for assets to keep logging data from assets which should temporarily not be used for control. Optimized failsafes to stop devices when communication of key elements are missing.
Monitor your assets with data intelligence
Reliable datalogging & data acquisition
From all linked devices on site (meters, solar inverters,
genset controllers, weather stations (irradiance/t°),
and I/O modules), & offer a secure local storage.
Data export & visualization
- Locally, over USB,
- Locally, over Modbus gateway,
- Remotely, using ePowerMonitor, Elum’s energy monitoring software, or compatible third-party monitoring platforms (FTP push, API integration).
Unlock monitoring capability with our hypervision, platform ePowerMonitor
Elum has maximized the profitability of many grid-tied plants worldwide
LATAM
C&I
500 kWp
Solar Power Plant of Atalaya
The Atalaya Solar Power Plant, equipped with ePowerControl HFS, coordinates between the Canuja Hydroelectric Plant and Atalaya Thermal Power Plant.
France
Utility Scale
11 MWp
Grid Compliance & Control for 11 MWp Solar Project in Auxerre
Situated across 5.3 hectares in Auxerre, this project features 20,000 solar panels With a capacity of 11 MWp, the photovoltaic project contributes 10% of the electricity supply to households in Auxerre, benefiting 2,800 households.
SSA
Utility Scale
15 MWp
Utility Scale with Multiple Points of Injection in Senegal
This utility-scale project integrates over 35,000 PV solar panels across 14 hectares, capable of producing 15 MW of clean electricity. Equipped with the ePowerControl PPC, it ensures grid stability and effective feed-in management by addressing limitation control requirements.
France
Utility Scale
24.7 MWp
Optimized Grid Injection & Stability across three Solar Sites in France
To ensure seamless integration with the Enedis HTA grid and uphold grid stability standards, Elum has successfully implemented the ePowerControl PPC controller and SCADA system across multiple sites, with a total capacity of 24.7 MWp.
SSA
Utility Scale
15 MWp
Utility Scale Hybrid Plant in Mine Mali
A hybrid plant installation at Mali's Goulamina Mine seeks to harness renewable energy sources and storage technologies to diminish reliance on traditional generators.
SSA
Utility Scale
1.4 MWp
Solar Diesel Integration for Grid Stability in Somalia
This hybrid power plant has been successfully commissioned in Beledweyne, Somalia. The system comprises a solar PV energy system integrated with the existing diesel gensets plant.
Frequently asked questions
Which applications are suited to the ZE series?
Our zero export controller is suited for the control and monitoring of solar energy systems integrating PV plants + grid in order to comply with local regulation.
Is it possible to establish a limitation of injection for HV/MV?
The controller can do ZE for High Voltage / Medium Voltage. The easiest way is to read directly on the High Voltage Cell in Modbus (it can require the installation of a Modbus communication card in the cell) to avoid installing VT by the EPC to measure the incoming power from the grid.
Can the ZE allow exports or imports of fixed amounts of power to the grid?
Yes, in addition to the zero export feature, the ZE controllers include the maximum export and the minimum import features, which manage the exports and imports to the grid.
