Solar Diesel Integration of a Coal Mine

South Asia
C&I
720 kWp

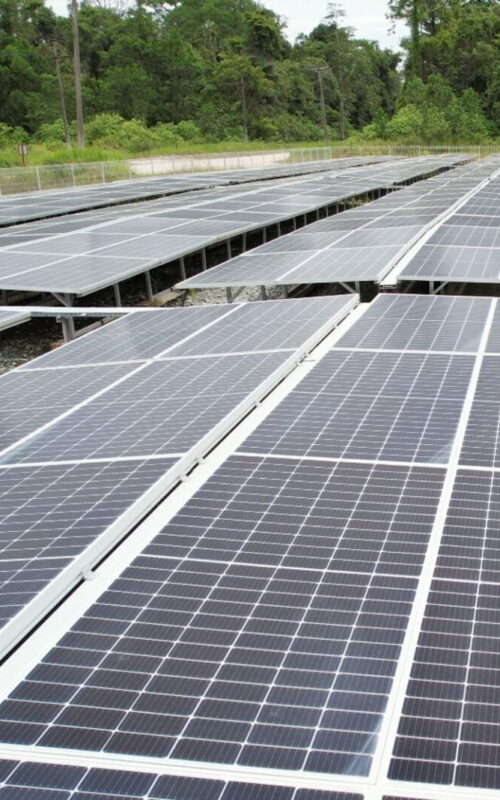

Solar Diesel integration on a Coal Mine in Indonesia 2

Application

Solar diesel integration

The context

  • Product: ePowerControl HFS-M

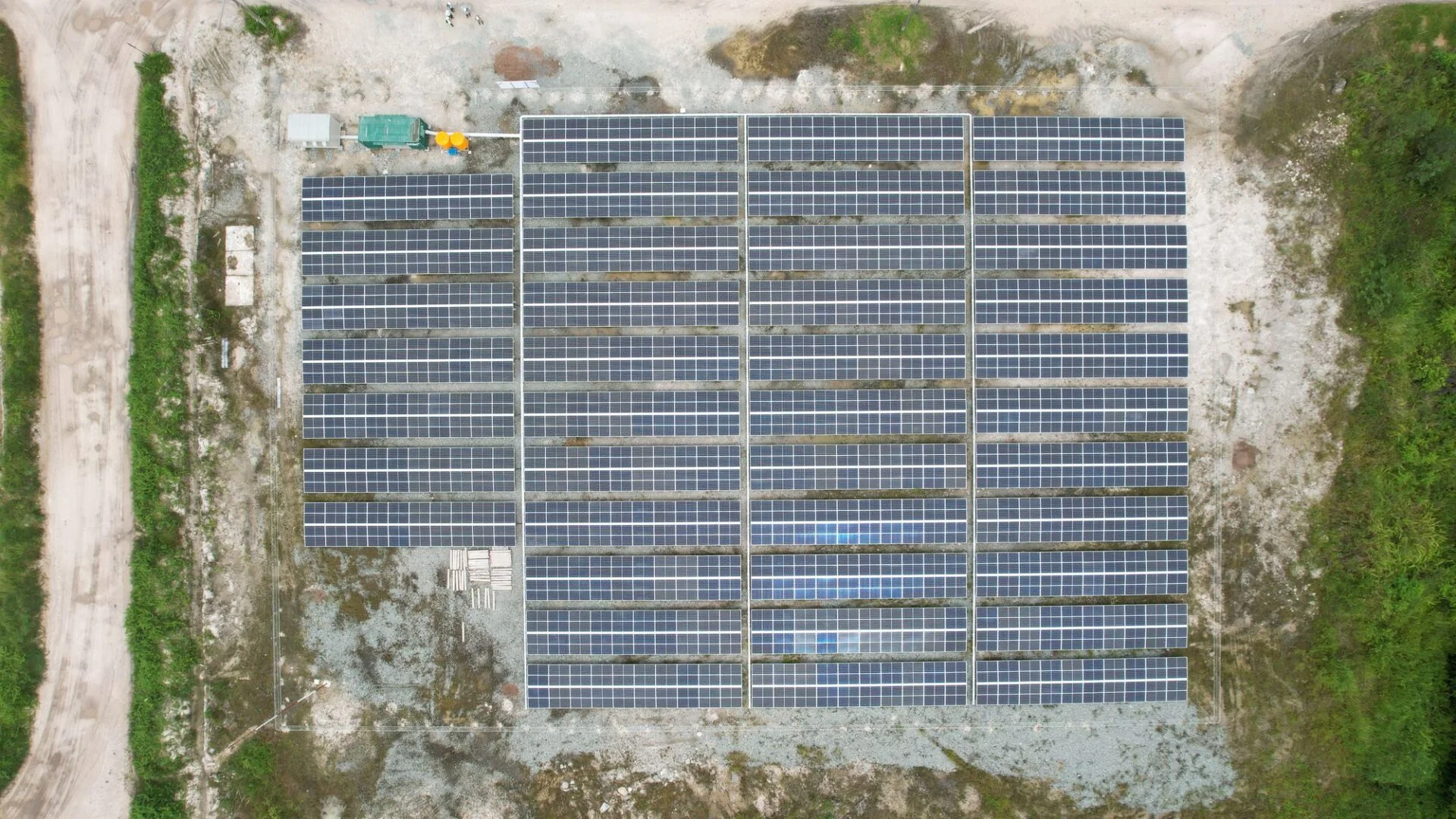

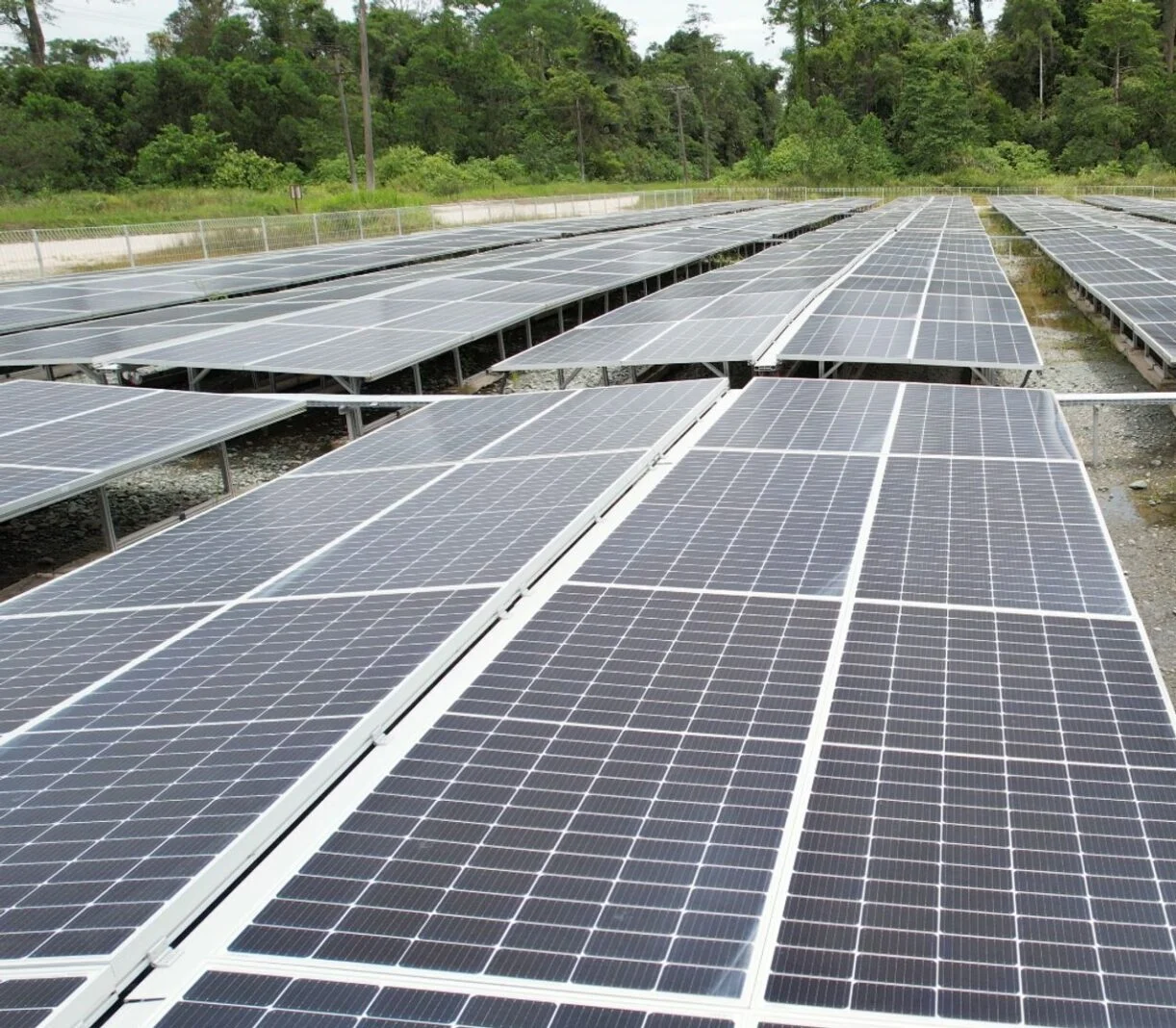

A coal mine located in East Kalimantan is composed of 6 Diesel Gensets using DSE 8610 and a 720 kWp PV System using 6 x Huawei SUN2000-100KTL-M1 inverters.

ePowerControl HFS has been added to the system to automate and synchronize the electricity production of the mine with the PV- Diesel Generators operations. The controller prioritizes the use of renewable sources and ensures minimum genset loading.

The site is also equipped with ePowerMonitor, a monitoring platform that allows remote monitoring for performance analysis, consumption supervision and alarm notification.

  • Layout:
  • PV:  720 kWp
    Gensets: 5 x 800 kW + 640 kW

  • Inverters2 x Huawei Sun2000-60KTL
  • Gensets: 6 gensets with DSE8610 controllers
